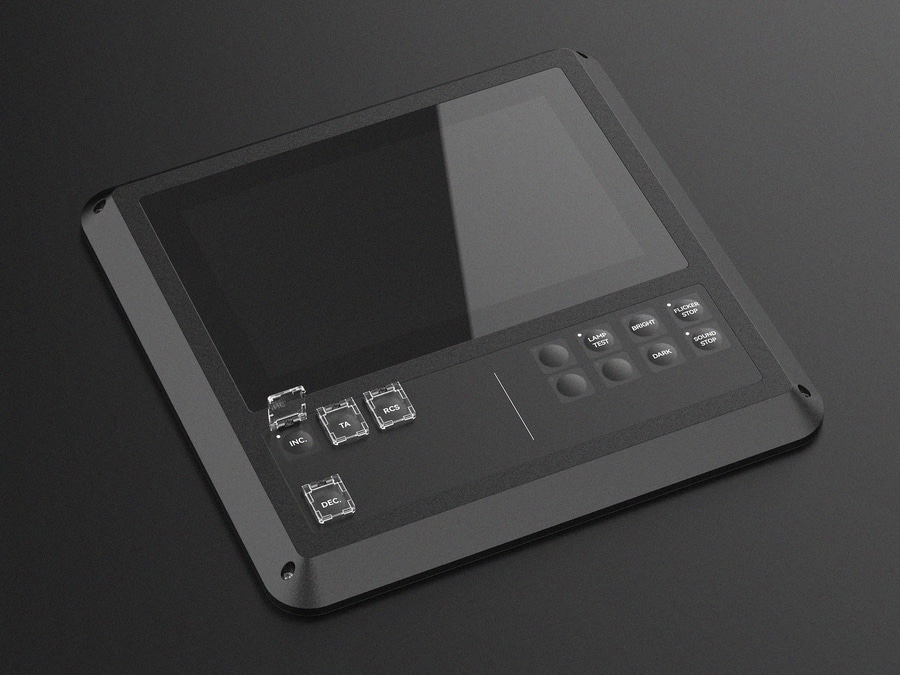

Interaction design of the control panel

The software and hardware interaction design of the Marine mainframe control panel needs to be systematically designed from dimensions such as hardware interaction logic, software interface logic, and human-machine collaboration mechanism.

I. Hardware Design

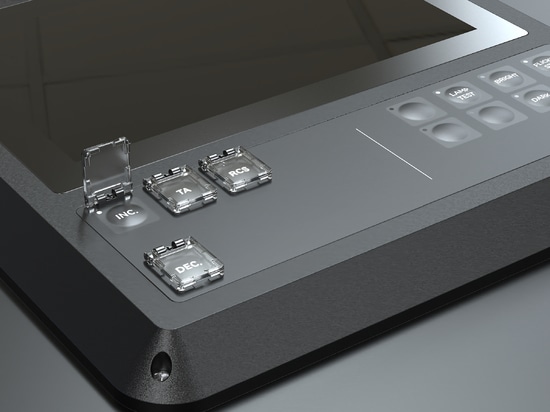

1. Material and Protection: Made of salt spray-resistant and moisture-proof metal, key buttons are equipped with protective covers, and the indicator light brightness is adjustable

2. Layout design: The layout is zoned according to the operation frequency, and the emergency button is independently set for quick operation

3. Interface Design: Modular interface design for convenient later maintenance and upgrade

-----------------------------------------

II. Software Design

1. Interface layout: The first-level interface displays core parameters and distinguishes device status with colors. The secondary interface simplifies the operation process

2. Interaction Design: Important operations require double confirmation. The screen is oil-proof and supports glove touch operation

3. Display optimization: Visible in strong light and adaptable to different lighting environments

-----------------------------------------

III. Interactive Collaboration

1. Real-time feedback: The software responds immediately when the hardware is operated, and the data of multiple control stations is updated synchronously

2. Safety protection: Hardware mechanical interlocks prevent misoperation, and misoperation triggers audible and visual alarms

3. Emergency mechanism: In case of system failure, the hardware can directly perform emergency control

-----------------------------------------

IV. Adaptation and Optimization

1. Environmental adaptation: The hardware has the ability to resist electromagnetic interference and is suitable for the complex environment of ships

2. System compatibility: The software supports multi-system operation and reserves upgrade interfaces

3. Training Support: Provide simulation training functions to facilitate operators' learning and use
