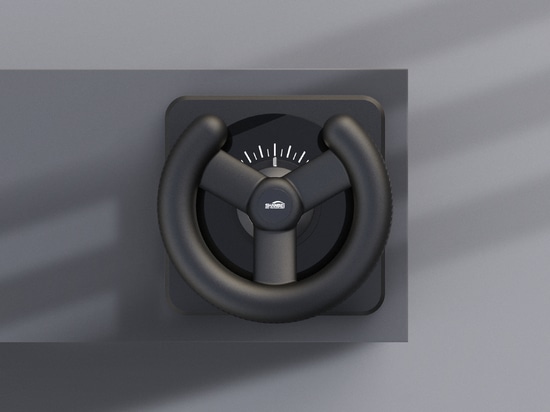

Key points of design for Marine mini steering wheels

The design key points of mini steering wheels can be elaborated from five dimensions: precise transmission, material innovation, environmental protection, intelligent integration, and modular adaptation.

I. Compact transmission system

1.It adopts a compound transmission structure (such as harmonic reducer + planetary gear set) to achieve a high reduction ratio (above 80:1) within a diameter of about 10cm, balancing miniaturization and torque output

2. Dual encoder feedback ensures steering accuracy (within ±0.1°), with a response time of ≤0.5 seconds

--------------------------------------

II. Weather-resistant Materials and Protection

1. The main body is made of lightweight and high-strength materials (aluminum alloy, carbon fiber nylon), and the transmission components are made of wear-resistant alloys (titanium alloy, etc.)

2. Multiple sealing design (labyrinth type + rubber ring), with a protection level of IP66, resistant to salt spray, water and dust

--------------------------------------

III. Intelligent Control Adaptation

1.Standardized interfaces (such as CAN bus) are provided for quick integration with the ship's ECU or AGV system, supporting multi-steering wheel coordination

2. It integrates basic algorithms such as dynamic damping adjustment and path correction to adapt to complex scenarios

--------------------------------------

IV. Modular Structure Design

1. Disassemble the three major modules of flange, transmission and control, with a generalization rate of ≥70%, and maintenance and replacement within no more than 5 minutes

2. Compatible with multiple scenarios such as ships (±120° steering) and AGVs (omnidirectional movement), it can be adapted by fine-tuning the parameters

--------------------------------------

V. Scene Adaptation and Optimization

1. Lightweight design (reducing weight by over 50% compared to traditional steering wheels), with a thickness of no more than 10cm, suitable for narrow Spaces

2. The steering Angle is ≥±120°, supporting omnidirectional or large-angle operation, meeting the requirements of narrow waterways, workshop turns, etc
