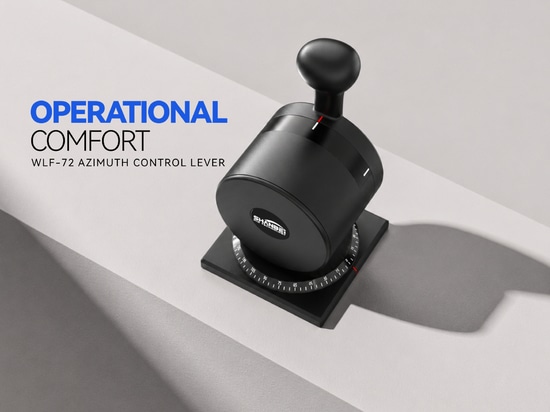

Advantages of the Spherical Grip in the Ergonomic Design of the Marine Azimuth Control Lever

The spherical grip is a configuration that other grip forms can hardly fully replace, especially in demanding working conditions typical of tugs, which require high-frequency, large-amplitude, and blind operation.

1. Control Decoupling
The geometric neutrality of the sphere decouples wrist rotation (for azimuth angle control) from arm push-pull movement (for thrust control). This allows the operator to steplessly modulate thrust while simultaneously rotating the lever through a full 360°, achieving coherent and interference-free combined manoeuvres.
---------
2. Intuitive Blind Operation
Thanks to its non-directional morphology, the hand can achieve a full-contact grip from any angle without the need to align fingers with dedicated grooves. The spherical surface provides uniform support across the palm, significantly reducing fatigue during prolonged operations and making it highly suitable for intensive blind-operation scenarios where the operator relies solely on tactile feedback.
---------
3. Precise Zeroing
The palm is extremely sensitive to the symmetry of a sphere. Any deviation in steering angle or thrust level away from the neutral centre will instantly disrupt this balanced feel. This gives the operator an instinctive, proprioceptive ability to return the lever precisely to the zero-thrust and zero-angle position without visual confirmation.
